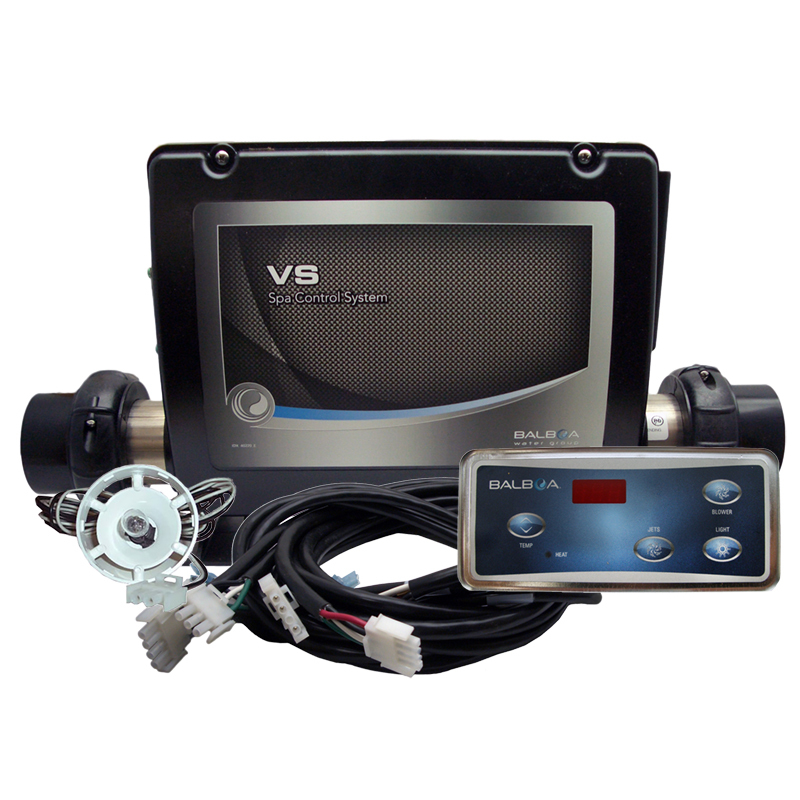

54217A Control System Balboa VS501 w/Duplex Standard Topside (Pump & Blower or 2 Pumps)

This complete retrofit spa pack VS-501 that can be hooked up 120/240V
Overall dimensions are 11" Tall x 15" Wide x 4-1/2" Deep

Operates

• 2 Speed Pump 1 120/240V
• 1 Speed Pump 2 120/240V or Blower 120/240V
• Circulation Pump 120/240V*
• Ozone 120/240V*
• Auxillary Hot Port 120/240V
• 12V Light
• 5.5KW Heater

*= Circulation pump and ozone must be matching voltage.

Includes:

• Duplex standard topside control panel (3.3" x 7.4")
• Adapter plate
• Light harness, wire, bulb and reflector. Includes a
• All necessary cords.

Features & Benefits:

• Replaces failure-prone mechanical pressure/flow switch
• Can be plumbed to either suction or pressure side of pump
• 120/240V convertible power
• Custom plastic enclosure
• M7 flow/ temperature sensors
• Rigorously tested
• US & Canadian safety approvals

The Value Pack Retrofit kit is based on the Value Series (VS) family of hot tub controls which were designed using Balboa's patented M7 temperature and flow sensor technology. The VS systems have a plastic enclosure to eliminate corrosion and suppress water intrusion. Also, the connectors are built onto the circuit board to minimize wires and simplify service. The Value Pack is meant to be installed by a spa professional who can rest easy knowing he's working with a kit that is known for reliability, ease of installation and serviceability
Manufacturer: Balboa
MPN: 54217A
